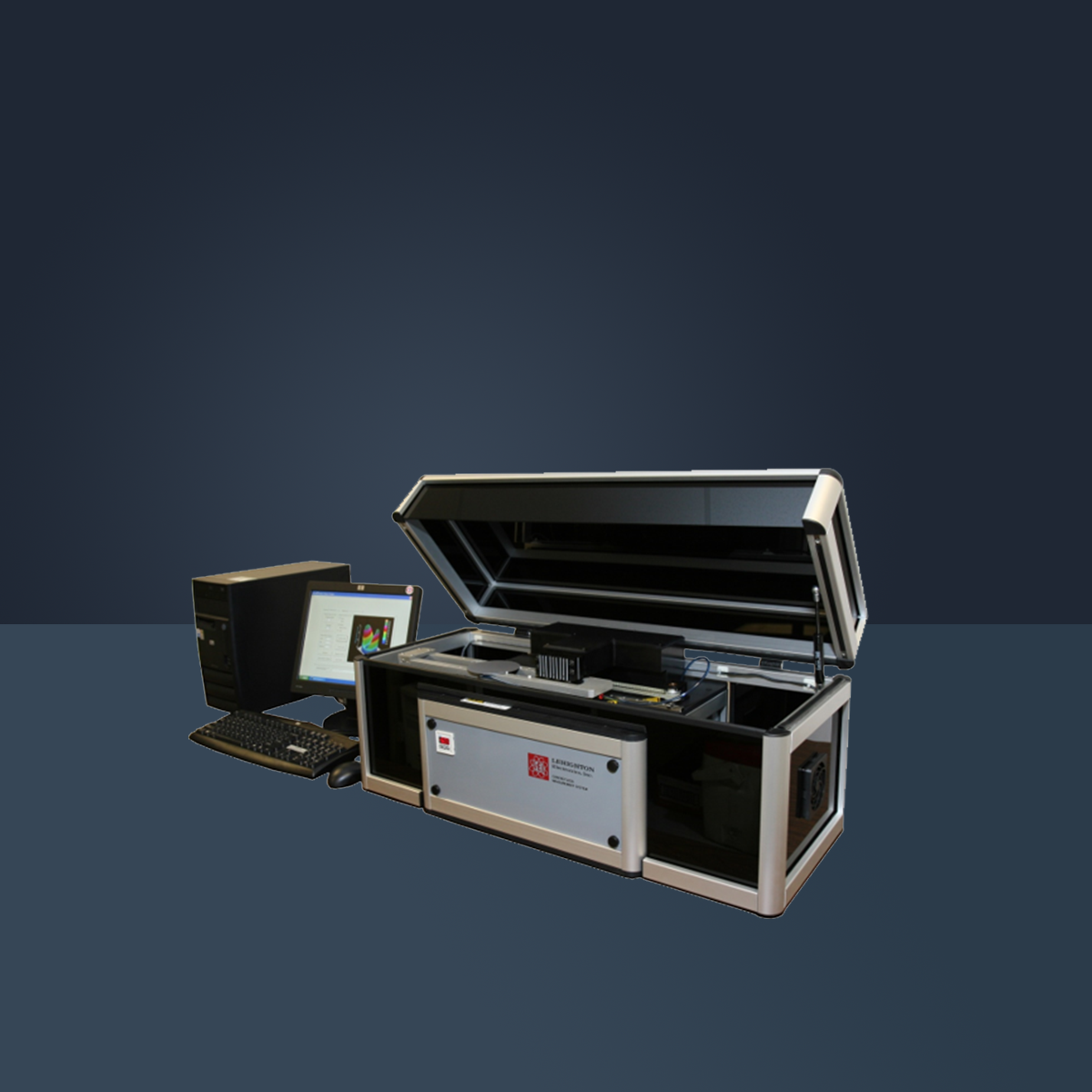

The Semilab LEI family allows for non-destructive measurement of sheet resistance. These instruments are optimized for compound semiconductor applications with ranges of operation that dovetail nicely with customer applications. The LEI technology became the process of record in the RF device area with many people asking to see the “LEI” map.
Features and System specifications:
•Eddy current allows for non-contact sheet resistance
•Ideal for RF device characterization
•Excellent for LED optimization
•Good for metal films on compound characterization
